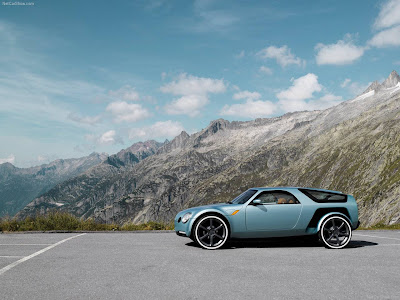

First pictures of the drivable prototype of mindset e-motion concept have been revealed. The prototype of the high-performance electric car was assembled by the French Heuliez Group.
The mindset e-motion drives locally emission-free for more than 100 km and reaches, due to an optional range extender which pro-duces electric energy by means of a combustion engine, a range of over 800km which is comparable to the range of conven-tional cars. The mindset e-motion distinguishes itself due to an out-standing appearance, low consumption and, additionally, exceptional user-friendliness.
A Spaceframe consisting of welded aluminium profiles provides the supporting elements. Attached to this Spaceframe there are fibre-enforced plastic components which make up the external panelling. The safety passenger cabin is part of the Spaceframe and consists of an extremely rigid construction around the entire occupant room. Furthermore, the safety of the passengers is increased by reinforcing profiles in the doors and across the vehicle, as well as by front airbags.
The standard make is a purely electric operated vehicle with space for two plus two persons or a generous, individually configurable rear compartment. In order to charge the battery, the vehicle can simply be plugged into a normal power socket.
The mindset e-motion concept provides nearly unlimited options. These include, for example, a range extender to increase the road coverage which can also be left in the garage if not needed, solar panels, an individually configurable interior space with extra niches or attachments required for specific purposes e.g. for golf bags, clothes, shopping, dogs etc.
Technical Specifications
Power train
Engine: High-performance electric motor
Maximum power output: 70 kW
Max. torque: 220 Nm
Gear box: Single speed
Battery technology: Lithium-Ion
Battery capacity: 20 kWh
Range Extender
Engine: Otto engine
Power output: 17 kW
Cubic capacity: 250 cm3
Fuel delivery: Electronic fuel injection
Fuel grade: Unleaded 95
Emission control: Three-way catalytic converter
Performance
CO2 emission with Range Extender: 79 g/km
Top speed: 140 km/h (electronically limited)
Acceleration 0-100 km/h: ~ 7 s
Range in electric mode: 100-200 km
Range with Range extender: >800 km
Charging time: 1-5h
Dimensions
Length: 4260 mm
Width: 1730 mm
Height: 1380 mm
Track: 1545 mm
Wheelbase: 2780 mm
Turning radius: 11 m
Unloaded weight: 800 kg
Cargo volume: 750 l
Seats available: 2+2
Suspension
Layout: Front wheel drive
Wheels: 4,5 J x 22
Tyres: 155/60 R 22
Front suspension: McPherson
Rear suspension: Multi-link suspension
Brake system
Brakes: 4 disc brake, ABS/Traction Control System ESP
Electric: Braking energy recuperation
